Nanopositioning Sensors

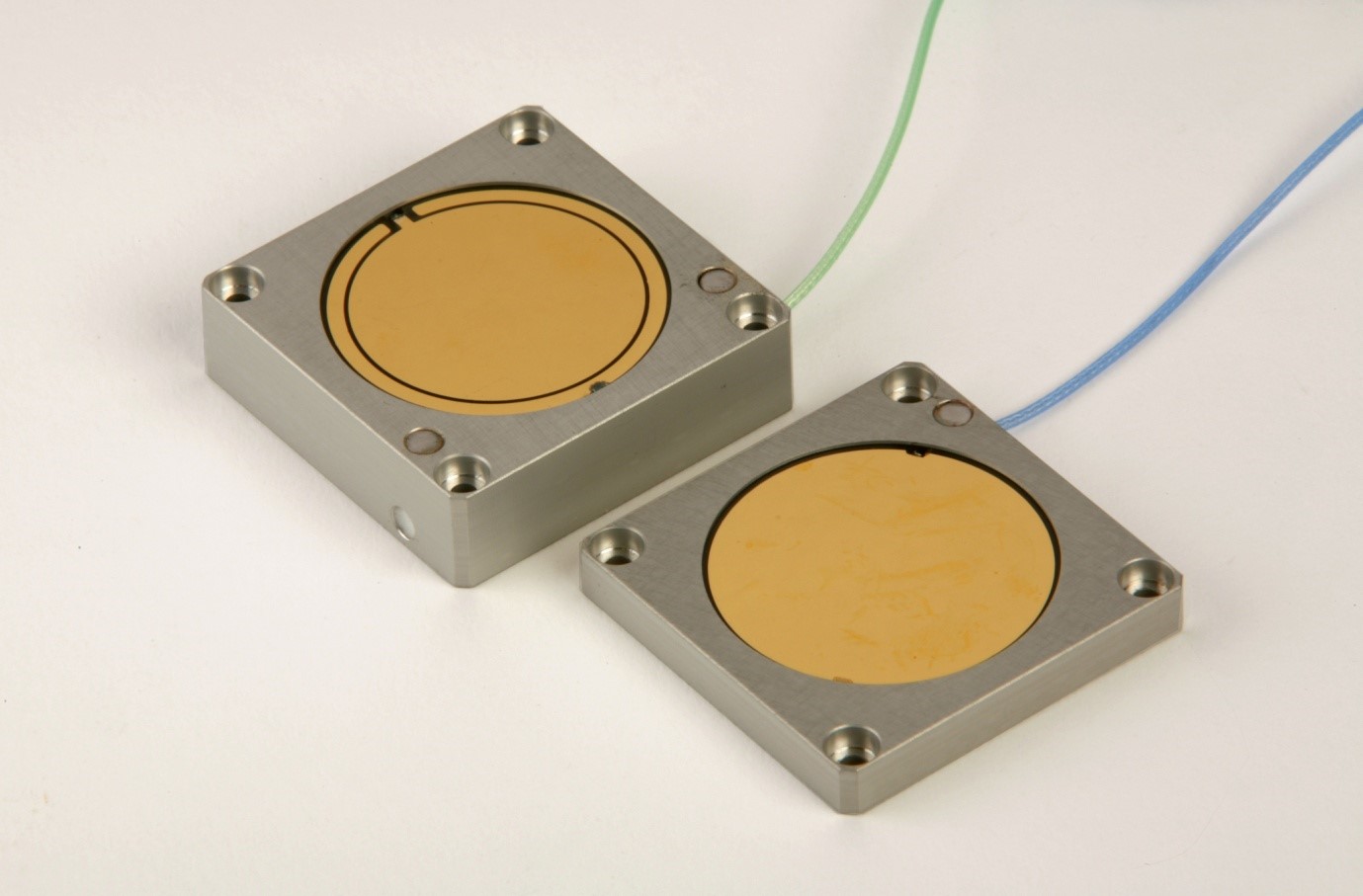

The NanoSensor is a non-contact position measuring system of extraordinary sesitivity based on the principle of capacitance micrometry. It can resolve to picometres with a range of up to 1.25mm. Two sensor plates (Target and Probe) form a parallel plate capacitor.

Queensgate manufactures various styles of sensors:

NX Series, all metal construction, are typically available in either Aluminium or Super Invar. Alternative materials are available to suit specific customer requirements, please consult Queensgate.

NZ Series sensors are constructed of Super Invar and Zerodur to provide exceptional thermal stability.

NCG Series Capacitive Position Sensors are the longest range sensors in the Queensgate portfolio. Designed for high resolution positioning in harsh environments.

Product Details
