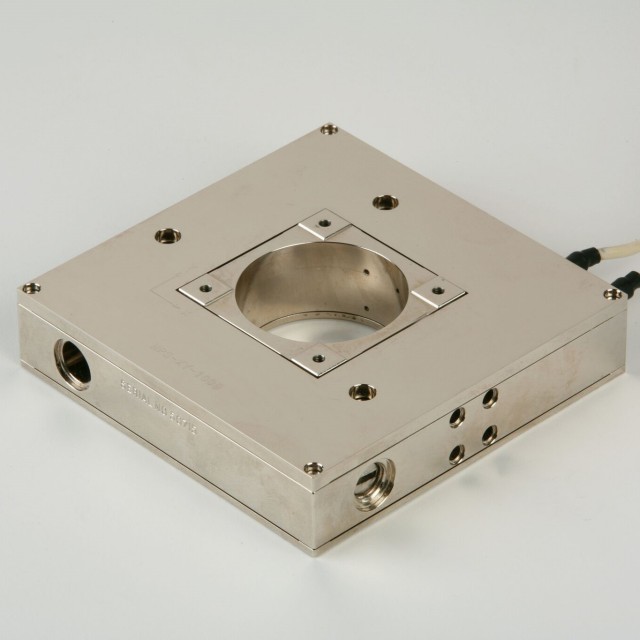

Nanopositioning Stages

queensgate

Closed loop piezo actuated stages. Standard stage materials are as listed in datasheets, alternative materials are available, including Super Invar, stainless steel, titanium and aluminium. Options include vacuum, radiation, high temperature compatibility. Custom designs also available on request.

Available in linear or tilting/rotational formats with both single and multi-axis configurations, Queensgates Nanopositioning Stages utilise high performance piezo actuation combined with Queensgates renowned capacitance position feedback to provide complete high performance closed loop systems. When specified with closed loop digital controller, complete plug and play interchangeability can be achieved.

Product Details

Queensgate

queensgate

Queensgate’s Dual Sensor TechnologyTM the OSM-Z-400A offers sub-nanometre positioning over 400μm of displacement with extremely low settling times.

Product Details

Nanopositioning Sensors

queensgate

The NanoSensor is a non-contact position measuring system of extraordinary sesitivity based on the principle of capacitance micrometry. It can resolve to picometres with a range of up to 1.25mm. Two sensor plates (Target and Probe) form a parallel plate capacitor.

Queensgate manufactures various styles of sensors:

NX Series, all metal construction, are typically available in either Aluminium or Super Invar. Alternative materials are available to suit specific customer requirements, please consult Queensgate.

NZ Series sensors are constructed of Super Invar and Zerodur to provide exceptional thermal stability.

NCG Series Capacitive Position Sensors are the longest range sensors in the Queensgate portfolio. Designed for high resolution positioning in harsh environments.

Product Details

Nanopositioning Actuator

queensgate

Nanopositioning Actuators/Translators with up to 120 microns range or up to 35000N blocking force. Custom designs also available on request.

In closed loop format, the DPT actuators incorporate Queensgates renowned capacitance feedback position sensor to provide low hysteresis – high accuracy positioning. Specified with Queensgates digital controller, complete plug and play interchangeability as available. For ultimate motion accuracy, flexure guidance is available providing minimal off axis deviations.
